ACEMAGIC Matrix M5 Mini PC: strong CPU performance in a compact package

The mini PC market is crowded with models that promise a lot but rarely deliver. The ACEMAGIC Matrix M5 Mini PC takes a different approach: it's built for people who need a small machine that can handle real work, not just web browsing.

The Matrix M5 doesn't rely on flashy looks or gaming hype. Instead, it focuses on CPU power and expandability. While many brands have cut corners as RAM and SSD prices rise, ACEMAGIC has put performance first. The M5 comes with an Intel Core 5 220H-a 12-core processor (4 P-core + 8 E-core) from Intel's latest mobile line-paired with 24GB of LPDDR5 RAM (soldered) and a 512GB SSD. The case measures 128 × 128 × 41.3 mm, and it runs Windows 11 Pro. At $629 on Amazon (at the time of review), it's competitively priced for this setup, especially with Wi-Fi 6 and Bluetooth 5.2 included.

Performance that matters

Benchmarks back up the specs. In Geekbench 6, the Core 5 220H keeps pace with last-generation i9 chips, falling behind only the i9-14900HX. That's impressive for a midrange CPU in a mini PC. The Core 5 220H runs at 3.7 GHz base and can boost to 4.9 GHz, with its official launch set for Q4 2024. AMD's 680M still leads in GPU tests, but for CPU-heavy tasks, the Matrix M5 stands out. In practice, this means smooth multitasking, fast productivity, and support for three displays without trouble.

Expandability and build quality

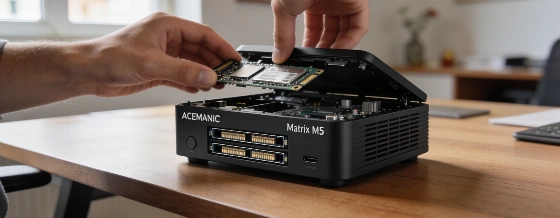

Getting inside the M5 isn't as simple as with earlier ACEMAGIC models. You have to flip the device, remove the feet, and unscrew the bottom before reaching the latch. Once open, storage upgrades are easy thanks to two M.2 2280 NVMe slots, and the Wi-Fi card can be swapped out. The RAM is soldered, which will disappoint some users, but this is common in the industry now. The plastic case feels sturdy, though it doesn't have the premium feel of the Retro X3.

There's one odd design choice: a metal midplate that looks like it should hold a 2.5" SSD but doesn't serve any real purpose. It's a small annoyance, but worth noting. The cooling system uses a centrifugal fan and dual copper tubes to keep temperatures under control. The fan is noticeable under heavy load, but not overly loud.

Competition and market impact

With so many mini PCs that are either underpowered or overpriced, the Matrix M5's value is clear. It's not the only model aimed at power users-GEEKOM's IT13 MAX, for example, also offers high-end specs but has been criticized for soldered RAM and slow SSDs. ACEMAGIC's M5 strikes a better balance, focusing on CPU performance and storage flexibility, even if some upgradability is lost.

For professionals, students, or anyone who needs a capable desktop in a small form factor, the M5 is worth a look. It supports three displays, offers modern connectivity (Wi-Fi 6, Bluetooth 5.2, USB-C, DisplayPort 1.4), and comes with a VESA mount for flexible setups at home or in the office. The lack of SATA SSD support is a missed chance, but the dual NVMe slots help make up for it. ACEMAGIC sells the Matrix Mini M5 as a business mini PC in Europe, with configurations starting at €499 and options up to the Core i9-14900HX for those who need even more power. Similar Intel Core 5 210H/220H platforms are also available from Lenovo and ASUS, showing that this architecture is becoming more common in mainstream mini PCs (Lenovo ThinkCentre Neo 50q Gen 5).

Author's verdict

The ACEMAGIC Matrix M5 Mini PC doesn't try to be a gaming machine or a design statement. Instead, it delivers steady CPU performance, practical expandability, and features aimed at real productivity. The soldered RAM and tricky internal access are drawbacks, but not dealbreakers. For anyone who needs a reliable, compact workhorse and can live without top-tier gaming, the M5 is a smart investment. ACEMAGIC has raised the bar for mini PCs at this price, and competitors will need to catch up.
