CORSAIR's RM850x power supply delivers stable voltage, low ripple, and quiet operation even under heavy load. Our review puts this 850 W unit through its paces to see how it handles the requirements of modern ATX 3.1 and PCIe 5.1 systems.
It's rare for a high-wattage power supply to stay silent at half load, but the CORSAIR RM850x (2024) manages it. Even as ATX 3.1 and PCIe 5.1 standards raise the bar for hardware, this PSU keeps noise and heat in check while delivering steady power.

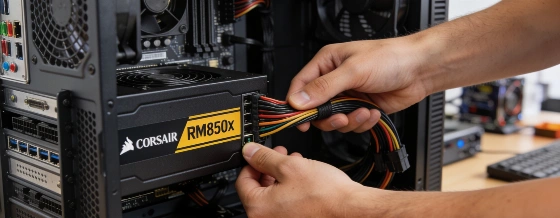

Most people never look inside their power supply, but the RM850x's design stands out. Its 140 mm fluid dynamic bearing fan doesn't spin until the load hits 425 W, and even then, it stays quieter than most case fans-measured at under 34 dBA in our tests. The zero-RPM mode and paracord-sleeved Type 4 cables made cable management and airflow simple during installation.
Prestazioni elettriche sotto la lente
Voltage regulation is a common weak spot for many PSUs, but the RM850x holds steady. The +12 V rail dropped by only 0.5% across the full load range, while the +5 V and +3.3 V rails stayed within a tight 0.03 V margin. Ripple was low: the +12 V rail peaked at 33 mV, well below the ATX spec, and the +5 V and +3.3 V rails measured just 3 mV. This level of clean power is unusual in this price range.
Timings and slew rates met or exceeded all ATX12V requirements. Power-on, rise, and PWR_OK times were all within spec, so system startups remained stable even during brief power interruptions.
The Corsair RM850x line remains a reference point for ATX 3.1 and PCIe 5.1 readiness, with native 12V-2x6 support and Cybenetics Gold certification, making it a top choice for modern GPU builds well into 2026.Build PC GuideIndependent Hardware ReviewSource
Efficienza e gestione termica
The RM850x's Cybenetics Gold rating is backed by real numbers: 95.93% efficiency at 50% load, and a power factor that rises from 0.67 at idle to nearly 0.98 under typical use. Even at the lowest tested loads, efficiency never dropped below 78.43%. Cybenetics Gold certification guarantees up to 91% efficiency in standardized tests, which is different from the higher peak values seen in controlled benchmarks-a detail often missed in retail specs.
Thermal imaging at 70% load showed the output stage at 47.9 °C and heatsinks at 44.2 °C, both well within safe limits. At idle, temperatures fell quickly, showing the zero-RPM fan mode works as intended. This approach isn't just about keeping things quiet-it also helps extend component life by reducing unnecessary fan use.
Costruzione e dotazione
The RM850x is built with future hardware in mind. Its native 12V-2×6 connector supports the latest GPUs, and the fully modular, mesh-sleeved cables make installation easier in tight or airflow-sensitive cases. The packaging is basic but protective, with molded pulp padding and a full set of accessories: mounting screws, cable ties, and documentation.
Protection features include OCP, OVP, UVP, OPP, OTP, and SCP. Japanese capacitors and a magnetic levitation fan point to a focus on durability. At 3 kg and 160 mm long, it fits most ATX cases without issue. The RM850x series is still widely available in Europe, and the "RM850x SHIFT" variant is clearly labeled as "PCIE 5.1 ATX 3.1" on recent retail listings, confirming its relevance for 2026 builds. For official standards and compliance details, see the MIMIT technical standards portal.
Confronto e prospettive di mercato
Many Gold-rated PSUs cut corners on ripple suppression or cable quality, but the RM850x does not. Its price-about $130-150 USD (or €130-140 in 2026 European listings)-puts it up against other 850 W Gold units, but few match its tested efficiency, low noise, and future-ready features. For more on how rare this level of performance is outside flagship models, see our previous review of mini PC power delivery.
Il giudizio editoriale
After weeks of real-world testing, the RM850x stands out as a strong example of what a modern ATX 3.1 power supply can do. Its voltage regulation, ripple suppression, and efficiency are proven under load. The zero-RPM fan mode is genuinely useful for anyone building a quiet system. While efficiency at very light loads could be better, this is a minor issue for a unit that performs where it counts. CORSAIR's 10-year warranty and attention to build quality make the RM850x a reliable choice for both enthusiasts and professionals.
