Cooler Master's MasterFan A140 FC is a 140mm all-metal fan built for high airflow and long-term reliability. Its performance in airflow, pressure, and noise tests makes it a strong choice for demanding PC builds.
Cooler Master's MasterFan A140 FC is not a minor update. This 140mm fan, built entirely from aluminum, stands out for its solid construction and focus on performance. The metal frame and blades give it a heft and rigidity that plastic fans can't match, and the design aims for both airflow and durability.

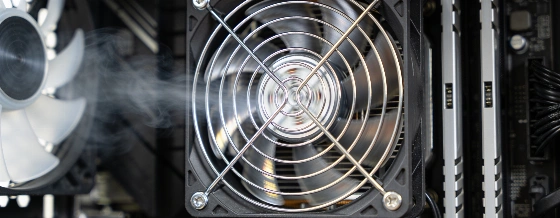

The A140 FC's 140×140×30 mm size allows for a tight 4 mm gap between the blades and frame, pushing the limits of manufacturing precision. The aluminum build prevents the flex and warping that can affect plastic fans, so it keeps its shape and performance even under stress. Cooler Master includes a steel grille in the box for safety-metal blades at high speed are a real hazard-and recommends installing it before use. The package also comes with a SATA-powered controller and mounting hardware.
On paper, the A140 FC is rated for up to 3000±10% RPM, with a maximum airflow of 164.4 CFM, static pressure up to 8.28 mmH₂O, and a noise ceiling of 41.5 dB(A). It uses dual ball bearings, a 4-pin PWM connector, and is rated for over 200,000 hours of use, with a six-year warranty. The controller offers three modes: Default (0-1900 RPM), TurboCharge (0-3000 RPM), and a fixed 3000 RPM setting. In Default mode, the fan runs up to 1900 RPM; TurboCharge unlocks the full speed range.
Independent tests show the A140 FC nearly hits its rated top speed, reaching 2983 RPM in TurboCharge mode-just 0.57% below spec. Airflow and static pressure in this mode measured slightly under the official numbers, at 156.67 CFM and 7.65 mmH₂O, while noise was higher at 48.5 dBA. In Default mode, tests recorded 1932 RPM, 100.86 CFM, 3.24 mmH₂O, and 36.7 dBA. Cooler Master does not publish separate specs for this setting.
Where many fans lose effectiveness when faced with airflow resistance, the A140 FC holds up well, especially at the 36 dB noise mark. It competes with heavy-duty models like the Sanyo Denki 9RA 14038. Smoke tests show a focused, powerful airflow, making it a strong option for both intake and exhaust in high-performance PCs. The modular controller, which also works with the MasterFan A120 FC, lets users unlock extra features on the A140, showing a practical approach to product design.
Durability is a key selling point. The dual ball bearing and three-phase motor keep power draw low at 0.15A, and the six-year warranty backs up Cooler Master's claims about longevity. The standard version sells for 219 yuan, positioning it as a premium but still accessible upgrade for serious builders. The silver-grey finish matches the A120's industrial look, and the lack of a ringed blade design brings it closer in style to the Mobius 140, hinting at a shift in aerodynamic priorities.
The A140 FC follows the earlier A120 FC, which drew attention for its 4000 RPM overclocking. Only the standard A140 is officially available for now, but the ability to unlock FC features with an existing controller blurs the line between product tiers. This modular approach is becoming more common in PC hardware, encouraging brand loyalty through flexibility. For those following PC cooling trends, the A140 FC's launch recalls the shakeup described in our earlier review of the Thermalright TR-KG750, where noise levels challenged budget expectations.
The MasterFan A140 FC is a deliberate step up in the world of PC case fans. With its all-metal build, modular upgrades, and proven performance under real-world conditions, it sets a new standard for what enthusiasts can expect. In a market full of plastic options, Cooler Master is betting that metal construction and careful engineering still matter.
